Honeywell 076063 00000350 01 Pressure Switch Explained

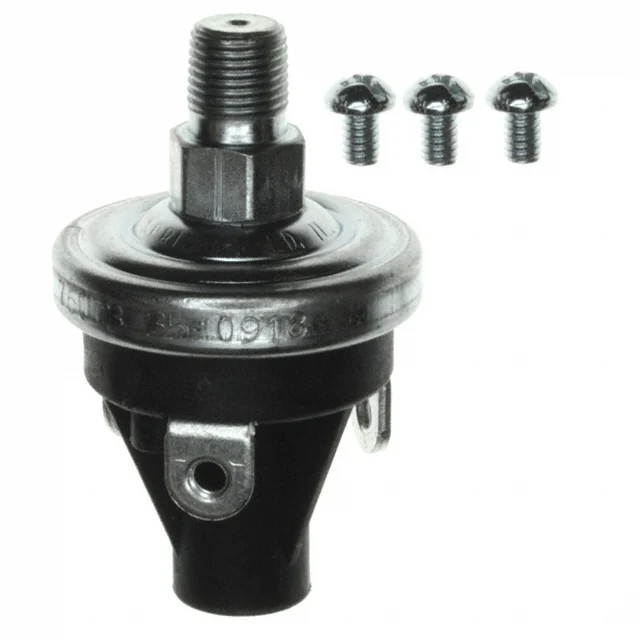

The Honeywell 076063 00000350 01 pressure switch is publicly associated with Honeywell’s 5000 Series extended-duty pressure switch range and is commonly listed at a 35 psi operating pressure. It is also linked to a male 1/8 in NPT pressure port, screw terminal connection, and a compact cylindrical package that suits practical industrial installation. For users researching Honeywell 076063 00000350 01 pressure switches, the part stands out as a mid-range pressure threshold option within a durable electromechanical switch family.
Technical Profile
Public distributor references indicate that this model is built for industrial automation use and belongs to the extended-duty 5000 Series platform. The part is widely connected with a 35 psi set point and a maximum pressure capability around 500 psi, while a broader 25 psi to 50 psi adjustment window is also referenced in public catalog listings. That makes it relevant in systems where a moderate pressure threshold must be detected reliably without moving into more complex electronic sensing architectures.
Installation and Mechanical Fit
A Honeywell 076063 00000350 01 pressure switch with a threaded 1/8 in NPT port is easy to understand from a maintenance perspective. It fits into familiar fluid or pneumatic line interfaces and uses screw terminals that remain popular in industrial equipment because they are straightforward to wire, inspect, and service. This is one reason 5000 Series pressure switches continue to attract attention in replacement and retrofit searches.
Where This Model Fits Best
This 35 psi configuration is useful for applications where a low-pressure switch would trigger too early and a higher-threshold switch would miss the functional operating band. Typical relevance includes compressors, pumps, hydraulic support equipment, mobile machinery subsystems, and industrial control panels where pressure status needs to be monitored through a robust switch rather than continuous analog sensing.
For more information about Honeywell, it is worth comparing adjacent Honeywell pressure switch models if the required switching point, adjustment range, or circuit behavior differs from the application target.
FAQ
What operating pressure is linked to Honeywell 076063 00000350 01?
Public sources commonly associate it with a 35 psi set point, while some listings also reference a broader 25 psi to 50 psi adjustable range.
What kind of pressure connection does it use?
It is linked with a male 1/8 inch NPT threaded pressure port.
Why do users choose a pressure switch like this instead of a sensor?
A pressure switch provides a direct on/off electrical response at a set pressure threshold, which is often simpler and more practical for control logic and status monitoring.
Is it designed for industrial duty?
Yes. It belongs to Honeywell’s extended-duty 5000 Series, which is intended for demanding industrial applications.
What are common applications for this model?
Common applications include compressors, hydraulic support systems, pumps, industrial automation equipment, and machinery requiring a defined pressure-actuated switch point.
