Elesa+Ganter 114013 Electrical Oil Level Indicator Technical Overview

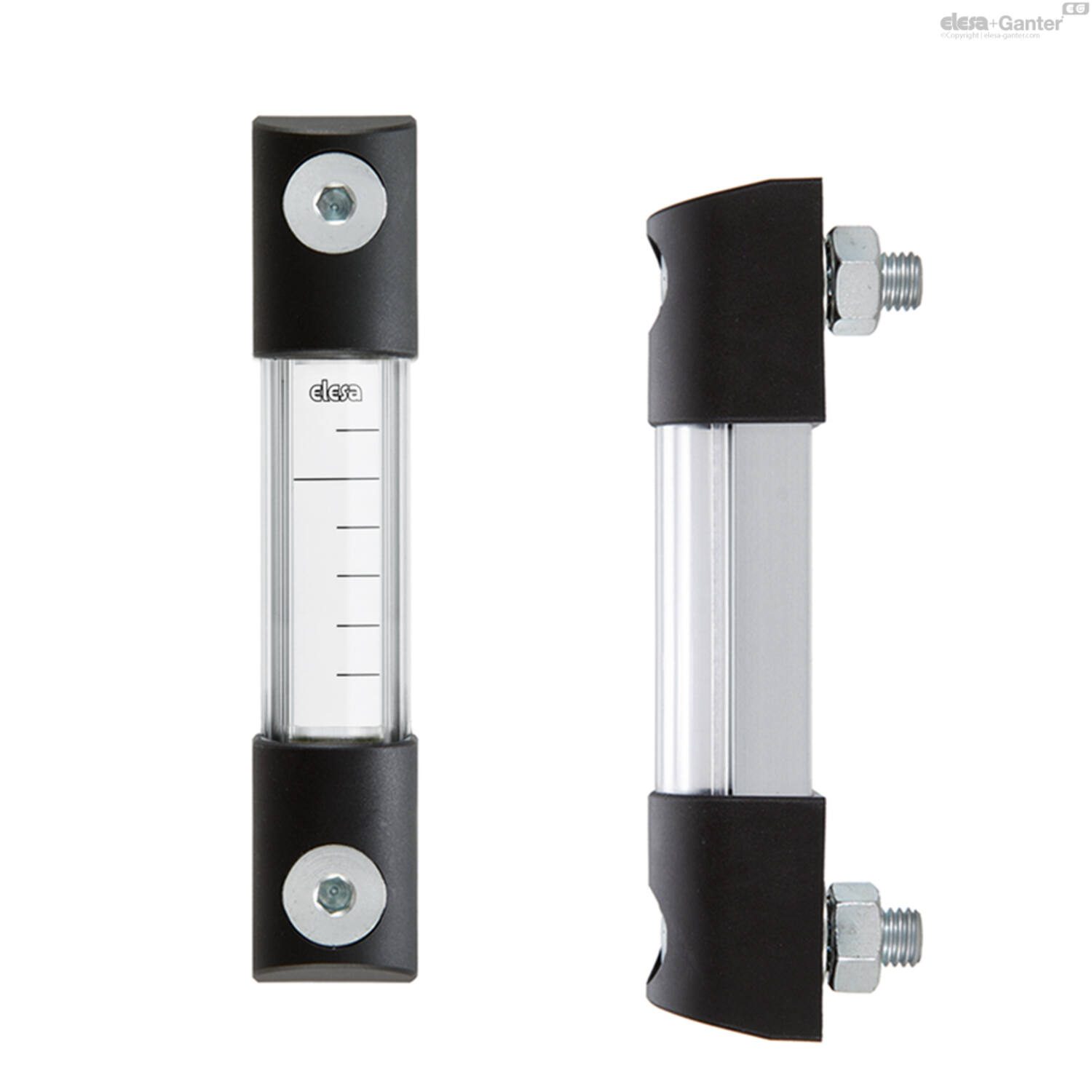

Elesa+Ganter 114013 electrical oil level indicator, with the full product code HCK.176-ZN-M12-NBR-PC-P-E-SW, is a column-style oil level indicator developed for hydraulic tanks and industrial reservoirs where both visual inspection and electrical minimum level monitoring are needed. This product type supports maintenance teams by making the oil level visible directly on the tank while also providing a switching signal for control systems.
Technical Configuration of HCK.176-ZN-M12-NBR-PC-P-E-SW
The HCK.176 size refers to a 176 mm hole centre distance, which is an important mounting parameter when selecting the correct indicator for a hydraulic reservoir. The ZN specification indicates zinc-plated steel fastening elements, while M12 defines the mounting thread. The NBR sealing rings are suitable for oil-related sealing applications, and the transparent PC tube is designed for oil level visibility.
The P version includes a removable transparent polycarbonate front protection. This additional shield helps protect the sight tube during daily operation, especially in workshop environments where dust, oil mist, cleaning activity or accidental contact may affect exposed components. The white contrast screen behind the tube improves readability and helps operators check the fluid level faster.
Switching Function and Sensor Design
The E-SW configuration identifies a model with electrical minimum level monitoring. The magnetic float activates a reed switch when the oil level reaches the defined minimum point. This makes the Elesa+Ganter 114013 HCK.176-ZN-M12-NBR-PC-P-E-SW oil level indicator suitable for systems where a low oil level signal must be integrated into the machine control logic.
The float is made from polypropylene-based technopolymer and is designed for a maximum continuous operating temperature of 80°C. This makes the unit a practical solution for many hydraulic oil tanks, lubrication reservoirs and industrial fluid monitoring applications.
Elesa+Ganter 114013 Typical Industrial Use Cases
This indicator is frequently relevant for hydraulic power units, machine tools, mobile equipment, production lines and lubrication systems. It is especially useful where visual oil level inspection alone is not enough and the system also requires a low-level electrical indication.
For more information about related industrial components, visit Elesa+Ganter technical solutions.
Elesa+Ganter 114013 FAQ
What product type is Elesa+Ganter 114013?
It is an electrical column oil level indicator for hydraulic and lubrication systems. It combines visual level reading with electrical minimum level detection.
What does HCK.176 mean?
HCK identifies the product family, while 176 refers to the 176 mm hole centre distance. This dimension is critical for correct tank mounting or replacement selection.
What is the purpose of the PC tube?
The transparent polycarbonate tube allows operators to see the oil level clearly. In this version, PC is intended for oil applications.
Why is front protection useful?
The removable polycarbonate front protection helps protect the visual tube from impact, dirt and workshop exposure, supporting longer-term readability.
Can this indicator be used near magnets?
It should not be installed close to strong magnetic fields because the electrical switching system relies on a magnetic float and reed contact principle.
What should be checked before choosing this model?
Before selection, check the mounting distance, thread size, oil compatibility, operating temperature, electrical switching requirement and installation environment.
