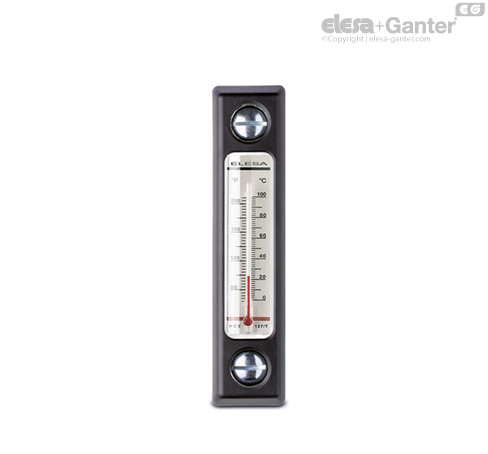

Elesa+Ganter 11369-R Level Indicator: HCX.254/T-AR-PT-M12

The Elesa+Ganter 11369-R level indicator is an HCX.254/T-AR-PT-M12 column level indicator with thermometer. This product type is developed for applications where operators need quick visual confirmation of fluid level and temperature on hydraulic reservoirs, oil tanks and lubrication systems.

The code HCX.254/T-AR-PT-M12 gives the main technical configuration. HCX.254 identifies the 254 mm level indicator family. The T mark indicates the thermometer version, allowing direct temperature monitoring. AR refers to the alcohol-resistant configuration, while PT indicates the technopolymer screw version. M12 defines the mounting screw size.

Technopolymer Screw Configuration

The PT version is especially interesting for industrial users because the technopolymer screw design supports reliable tightening while reducing unnecessary stress on the fixing points. Elesa+Ganter HCX/T-AR documentation highlights the special screw-head concept developed to help achieve optimum compression of the packing rings when correct tightening torque is applied.

This matters in real applications because level indicators must seal properly against the tank wall. Too little compression may create leakage risk, while excessive stress may damage the mounting area or the component. The PT configuration provides a practical balance for many industrial installations.

Level and Temperature Monitoring in One Component

The Elesa+Ganter 11369-R HCX.254/T-AR-PT-M12 level indicator helps maintenance teams inspect two important operating conditions at once: fluid level and fluid temperature. Low level may indicate leakage, consumption or filling errors. High temperature may indicate overload, poor cooling or system inefficiency.

For more information about Elesa+Ganter product solutions, related HCX level indicator versions can be reviewed by material, size and mounting configuration.

FAQ

What is Elesa+Ganter 11369-R used for?

It is used for visual monitoring of oil or fluid level and temperature in industrial tanks and hydraulic reservoirs.

What does PT mean in HCX.254/T-AR-PT-M12?

PT identifies the technopolymer screw version of the level indicator.

Does this model include a thermometer?

Yes. The T in the code indicates that this level indicator includes a thermometer for direct temperature reading.

Why is proper tightening important?

Correct tightening helps the packing rings seal properly while avoiding unnecessary stress on the screws and tank connection points.

Is this a suitable component for preventive maintenance?

Yes. It allows fast inspection of level and temperature, helping teams detect potential issues before they become costly failures.
