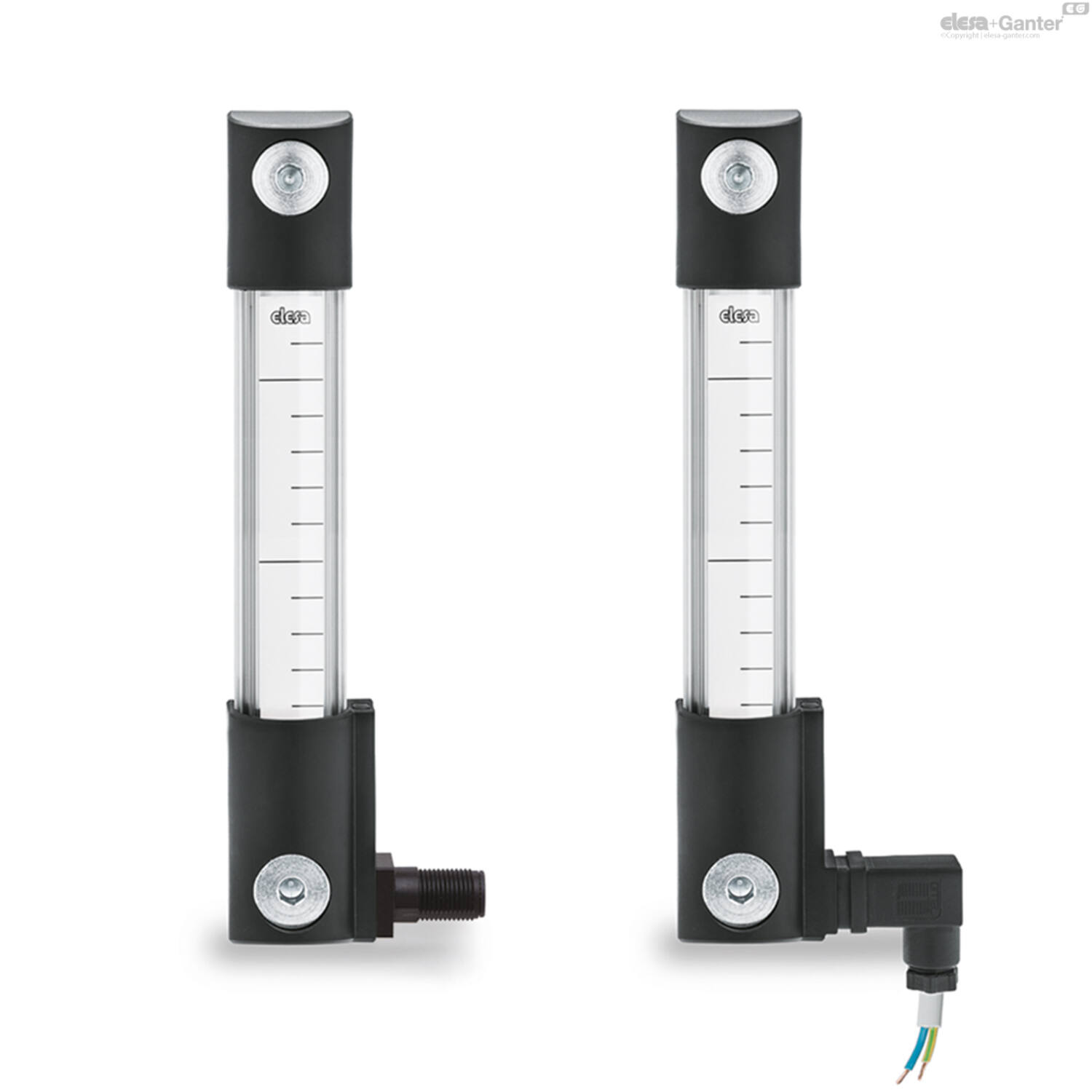

Elesa+Ganter 113667-KN Electrical Oil Level Indicator: HCK.127-A4-M12-NBR-GL-P-E-NO-STL-KN
Elesa+Ganter 113667-KN electrical oil level indicator is an HCK.127 column-type indicator used for monitoring fluid level in hydraulic and industrial reservoirs. Its configuration combines A4 stainless-steel hardware, M12 mounting, NBR sealing, a GL borosilicate viewing tube, normally open level sensing and an STL temperature probe.
Construction and Installation
The 127 mm mounting distance makes this model suitable for compact and medium tank designs. M12 threading supports secure mechanical installation, while A4 stainless-steel components provide improved corrosion resistance for demanding operating environments. This is important for machinery exposed to humidity, cleaning routines or variable workshop conditions.
Fluid Visibility and Protection
The GL tube provides a transparent borosilicate glass viewing path. It is designed for use with oil, water and water/glycol-based solutions under verified operating conditions. The polycarbonate front protection helps preserve readability and protects the level tube from external contact, while still allowing maintenance access when cleaning is needed.
Normally Open Level Signal
The E-NO designation means the integrated level contact is normally open. This signal type is widely used in alarm circuits, machine control panels and PLC inputs where a change of state is required when the float reaches the defined threshold. The magnetic float system activates the electrical contact as the fluid level changes.
STL Temperature Probe Advantage
The STL configuration gives this model a temperature probe function rather than a simple fixed-temperature switch. That can support more informative thermal monitoring in hydraulic systems where oil temperature trends matter for reliability, viscosity control and preventive maintenance planning.
Recommended Application Profile
The Elesa+Ganter 113667-KN HCK.127 oil level indicator is a strong fit for hydraulic power units, lubrication stations, production machinery and industrial tanks where level visibility, electrical feedback and temperature data are all valuable. For more details about compatible industrial components, visit Elesa+Ganter solutions.
FAQ
What is Elesa+Ganter 113667-KN?
It is an electrical oil level indicator with visual fluid display, normally open level contact and STL temperature probe.
What does A4 mean in this code?
A4 indicates stainless-steel hardware selected for improved corrosion resistance in industrial environments.
Why is the STL probe useful?
It supports temperature monitoring where the system needs temperature information rather than only a fixed alarm threshold.
Can this be used in water/glycol applications?
Yes, the GL borosilicate tube is intended for water/glycol-based solutions when the actual pressure, temperature and fluid compatibility are verified.
