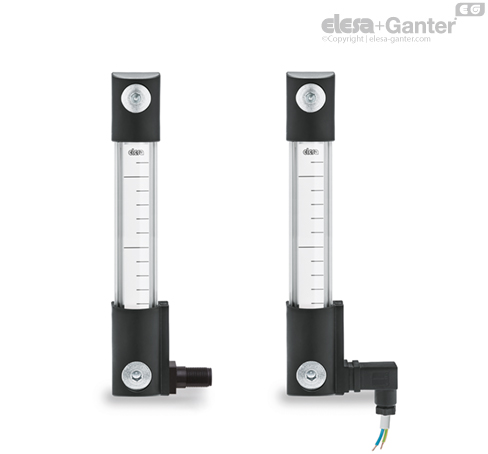

Elesa+Ganter 113603 Electrical Level Indicator

The Elesa+Ganter 113603 electrical level indicator, coded as HCK.127-SST316-M12-NBR-PC-P-80-NC, is designed for clear oil level monitoring in hydraulic tanks, reservoirs, and industrial machinery where visual inspection and electrical signaling are both required. Its HCK.127 format refers to a 127 mm hole centre distance, making it suitable for compact installations where reliable level reading must be achieved without complex instrumentation.

Technical Structure and Material Configuration

This model uses M12 threaded mounting, NBR sealing rings, a transparent polycarbonate level tube, and removable front protection. The SST316 reference indicates stainless steel hardware suitable for environments where corrosion resistance is an important engineering requirement. The polycarbonate window supports direct visual reading, while the protected front design helps reduce exposure to external mechanical contact during routine industrial operation.

The “80-NC” configuration identifies a maximum temperature sensor setting of 80°C with a normally closed contact logic. This is especially relevant in hydraulic power units and lubrication systems where rising oil temperature or level variation must be integrated into machine control circuits. The NC output is often preferred in safety-aware circuits because a change in state can be detected by the monitoring system.

Where This Indicator Is Commonly Used

The Elesa+Ganter 113603 electrical level indicator is commonly applied in hydraulic oil tanks, industrial lubrication reservoirs, power transmission units, machine tools, and automation equipment. Its combination of visual level inspection and electrical monitoring makes it practical for maintenance teams that need fast local reading and a signal-ready component for control panels.

For broader product family details, visit Elesa+Ganter components.

FAQ

What does Elesa+Ganter 113603 electrical level indicator mean?

It refers to the HCK.127-SST316-M12-NBR-PC-P-80-NC configuration, an electrical oil level indicator with 127 mm fixing distance, M12 mounting, NBR seals, polycarbonate tube, front protection, 80°C sensor, and normally closed contact.

Is this model suitable for oil applications?

Yes. The PC tube and NBR sealing configuration are commonly associated with oil service in hydraulic and lubrication systems.

What is the benefit of the NC contact?

A normally closed contact can help control systems detect status changes reliably, making it useful in monitoring circuits where continuity supervision is important.

Why is SST316 important?

SST316 stainless steel improves resistance against corrosion and supports use in demanding industrial environments.
