Elesa+Ganter 113509 HCK.127-SST-M12-FKM-GL-P-EHT-NO-80-NO Electrical Level Indicator

Technical Overview

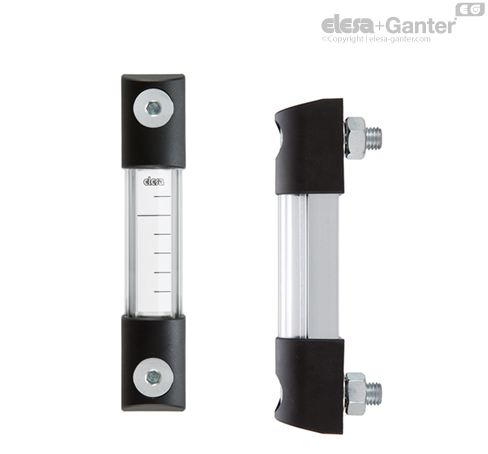

The Elesa+Ganter 113509 electrical level indicator is a column-style fluid level monitoring component developed for industrial hydraulic and lubrication systems. The complete code, HCK.127-SST-M12-FKM-GL-P-EHT-NO-80-NO, describes a 127 mm indicator with stainless steel hardware, M12 connection, FKM sealing rings, glass tube construction and a normally open electrical signal arrangement.

This product type is especially useful where a machine requires both direct visual inspection and electrical level monitoring. Operators can check the fluid level at the tank, while the NO contact can support system feedback when the level reaches the defined switching position.

Key Technical Characteristics

The 127 mm hole-centre distance makes the indicator suitable for compact hydraulic tanks and reservoir panels. Stainless steel fixing components improve resistance against wear and corrosion, while the FKM sealing rings help maintain reliable sealing performance under demanding operating conditions.

The GL version uses a transparent borosilicate glass tube. This material supports excellent level visibility and is commonly preferred where chemical resistance and clarity are important. The EHT-NO-80-NO structure indicates an electrical level and temperature-related configuration with normally open signal logic and an 80°C reference in the code.

Application Areas

The Elesa+Ganter 113509 HCK.127 electrical level indicator can be used in hydraulic power packs, lubrication units, oil tanks, industrial presses, machine tools and fluid management systems. It helps maintenance teams identify insufficient fluid levels before they lead to overheating, pump damage or unplanned downtime.

For more information about industrial standard components, visit Elesa+Ganter.

Elesa+Ganter 113509 FAQ

What is the main function of Elesa+Ganter 113509?

Its main function is to provide visual liquid level monitoring and electrical level signalling in industrial tanks and reservoirs.

What does NO mean in this product code?

NO means normally open. In this configuration, the electrical contact is open under its normal condition and changes state when the defined level condition occurs.

Is the glass tube useful in industrial environments?

Yes. The glass tube offers clear visibility and good resistance in suitable fluid applications, making it useful for hydraulic and lubrication systems.

Why does this model use stainless steel hardware?

Stainless steel screws, nuts and washers improve durability and help the indicator perform reliably in demanding machine environments.

Can this model be used for all liquids?

No. Fluid compatibility should always be checked according to the actual operating temperature, pressure and chemical conditions.
