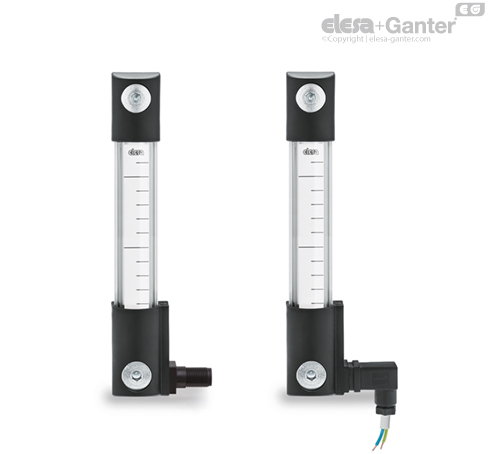

Elesa+Ganter 113505 HCK.127-SST-M12-FKM-GL-P-EHT-SW Electrical Level Indicator
Technical Overview
The Elesa+Ganter 113505 electrical level indicator is an HCK.127 series component intended for visual and electrical monitoring of fluid level in industrial tanks and hydraulic systems. Its product code, HCK.127-SST-M12-FKM-GL-P-EHT-SW, identifies a 127 mm hole-centre column level indicator with M12 mounting, stainless steel fixing hardware, FKM O-ring sealing, a borosilicate glass tube and transparent front protection.
The SW configuration separates this version from the NO and NC variants. It is selected where the electrical switching arrangement must match a specific machine control requirement. In daily use, the product gives operators a clear visual level reference while supporting electrical monitoring within the machine’s control concept.
Construction Details
The assembly ends are made from glass-fibre reinforced polyamide-based technopolymer, while the support is aluminium. The GL tube provides a transparent level column for oil, water and water/glycol-based solutions. This is valuable in hydraulic equipment where the condition and level of the fluid must be checked quickly during inspection rounds.
The SST hardware package includes AISI 303 stainless steel screws and AISI 304 stainless steel nuts and washers. This makes the Elesa+Ganter 113505 electrical level indicator a durable option for machinery exposed to industrial environments. The FKM O-ring supports higher-temperature sealing performance, while the removable polycarbonate protection helps protect the level tube and supports cleaning access.
Typical Applications
The Elesa+Ganter 113505 electrical level indicator is suitable for oil tanks, hydraulic power packs, lubrication units, machine reservoirs, industrial process equipment and maintenance-critical fluid systems. It is particularly useful where a single component must provide visible level confirmation and an electrical switching function.
Elesa+Ganter 113505To review related industrial components, visit Elesa+Ganter.
Elesa+Ganter 113505 FAQ
What is the Elesa+Ganter 113505 used for?
It is used for monitoring fluid level in hydraulic and lubrication systems. The transparent column supports visual inspection, while the electrical function supports automated machine monitoring.
What does SW mean in this product code?
SW identifies a switching-related version within the electrical level indicator configuration. The exact wiring and control behavior should be matched with the machine’s electrical design requirements.
What fluids can the GL tube support?
The GL version is intended for oil, water and water/glycol-based solutions, subject to the real operating conditions of the system.
Why is FKM used instead of NBR?
FKM is selected where higher temperature resistance and stronger sealing performance are required. It is a preferred option for more demanding oil and fluid monitoring applications.
Is transparent protection included?
Yes. The P designation indicates removable transparent polycarbonate front protection. It helps protect the viewing area and can be removed during cleaning.
What product type keyword best describes this item?
The clearest product phrase is Elesa+Ganter 113505 electrical level indicator. It describes the brand, stock code and technical product type in one precise term.
