Elesa+Ganter 113437 HCK.127-SST-M12-FKM-PC-P-80-NO Column Level Indicator
Technical Overview

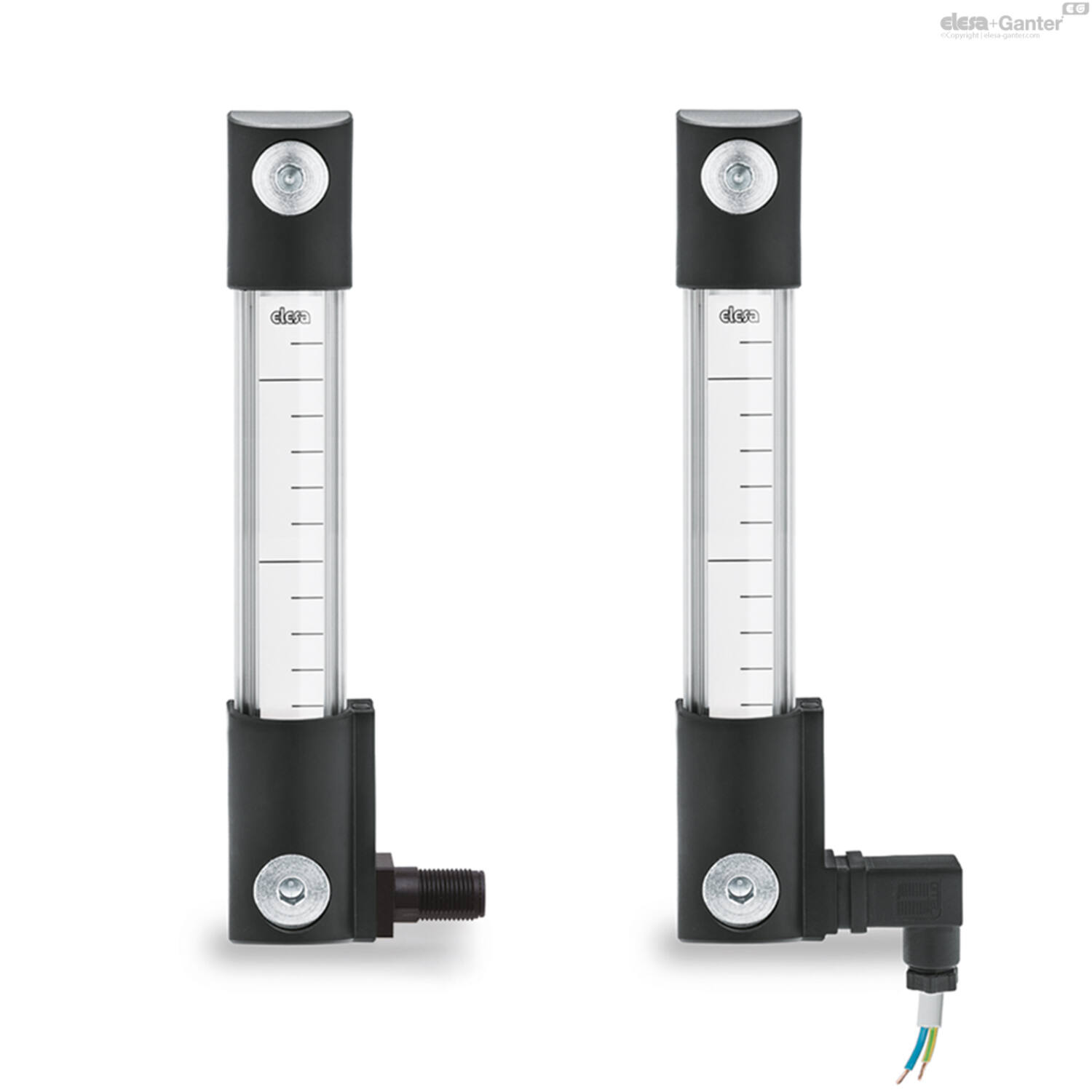

The Elesa+Ganter 113437 column level indicator is designed for clear visual monitoring of fluid level in hydraulic tanks, lubrication units, industrial reservoirs and oil-based systems. The full model code, HCK.127-SST-M12-FKM-PC-P-80-NO, describes a compact 127 mm hole-centre indicator with stainless steel fixing elements, M12 threaded connections, FKM sealing rings and a transparent polycarbonate tube.
This model belongs to the HCK family, a widely used range of column level indicators suitable for oil applications. The PC tube provides direct level visibility, while the removable polycarbonate front protection helps shield the viewing area and allows practical cleaning during maintenance. For users comparing industrial oil level indicators, hydraulic tank level gauges and electrical level indicators, the Elesa+Ganter 113437 column level indicator offers a balanced configuration for demanding machinery environments.
Elesa+Ganter 113437 Key Technical Features
The SST section of the code indicates AISI 303 stainless steel screws with AISI 304 stainless steel nuts and washers. This makes the product suitable for applications where corrosion resistance and mechanical reliability are important. The FKM O-ring, also known for high-temperature sealing performance, supports continuous operating temperatures up to 130°C under suitable working conditions. The M12 fixing thread and 127 mm hole-centre distance make this version practical for standardized reservoir layouts.
The “80-NO” part identifies a maximum temperature electrical sensor set at 80°C with normally open contact. In practice, the contact closes when the preset temperature is reached. This makes the unit useful not only for visual level checking but also for simple temperature-related signalling in hydraulic systems.
Elesa+Ganter 113437 Application Areas
The Elesa+Ganter 113437 column level indicator is commonly considered for hydraulic power packs, oil tanks, industrial machinery, lubrication reservoirs, processing equipment and maintenance-critical fluid systems. Its transparent tube helps operators inspect the level quickly, while the stainless steel fixing hardware supports longer service life in industrial installations.
For more technical component information, visit Elesa+Ganter.
FAQ
What is the Elesa+Ganter 113437 used for?
It is used to monitor the oil level in reservoirs and hydraulic tanks while also providing an 80°C normally open temperature sensor function.
What does FKM mean in this model?
FKM refers to the synthetic rubber O-ring material, commonly selected where higher temperature resistance is needed compared with standard NBR sealing.
Does this model include front protection?
Yes. The “P” in the code indicates removable polycarbonate front protection, useful for protecting the level window and simplifying cleaning.
What product type keyword fits this item?
The required product phrase is Elesa+Ganter 113437 column level indicator.
