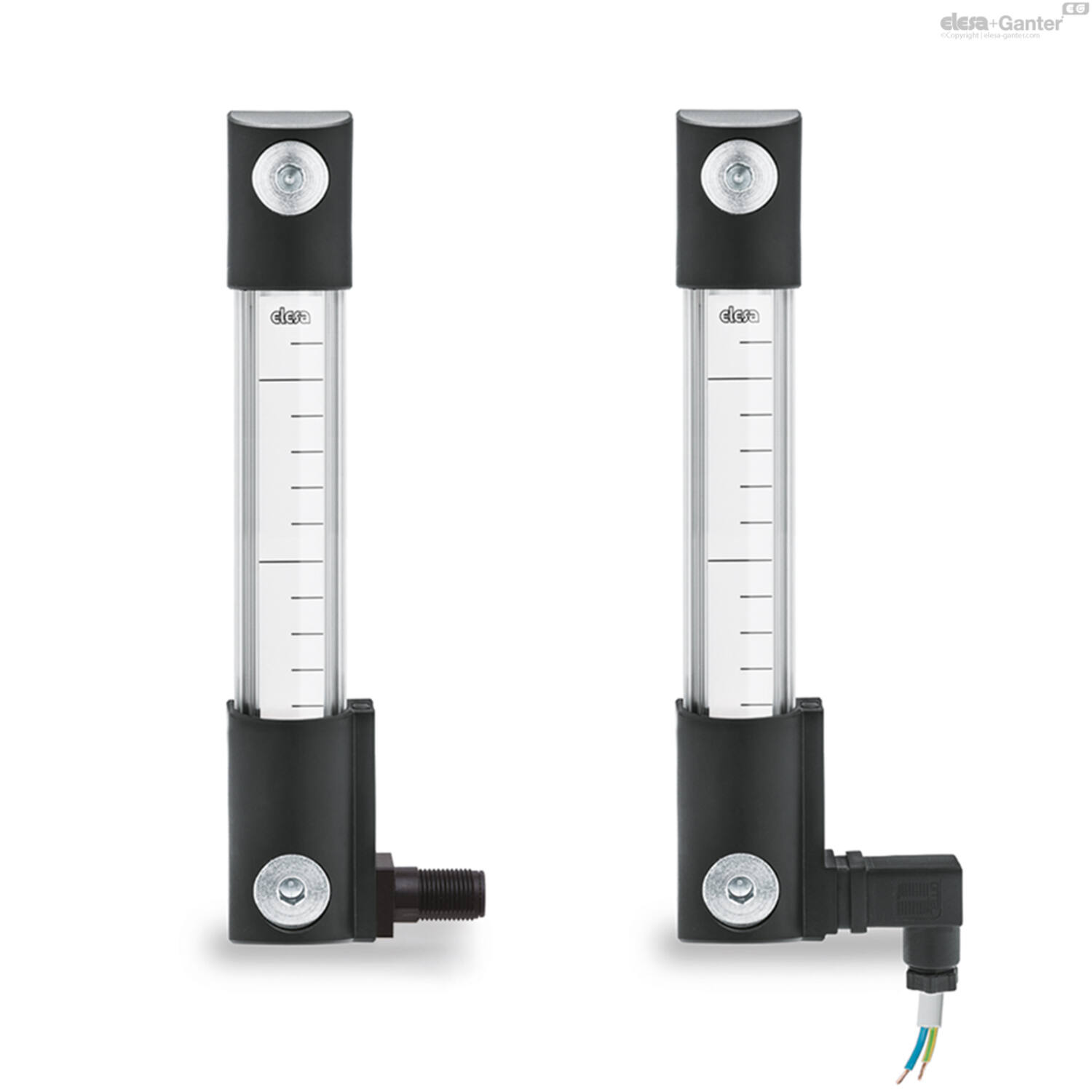

Elesa+Ganter 113305-KN Electrical Level Indicator

The Elesa+Ganter 113305-KN electrical level indicator, identified by the stock name HCK.127-SST-M12-NBR-PC-P-80-NO-KN, is designed for clear oil level monitoring in hydraulic tanks, lubrication units and industrial machine reservoirs. Its 127 mm column format helps operators check the fluid level visually, while the integrated electrical function supports signal-based monitoring when a defined level or temperature condition must be observed.

Technical Overview

This model belongs to the HCK.127 family and uses stainless steel fixing elements, an M12 connection, NBR sealing elements and a transparent polycarbonate tube. The PC tube provides practical visibility for daily inspection, while the NBR material is suitable for common mineral oils used in hydraulic systems. The “P” version includes front protection, which makes it appropriate for equipment where the indicator may be exposed to contact, vibration or workshop handling.

Electrical Monitoring Function

The code “80-NO” refers to a normally open electrical contact associated with an 80°C temperature threshold. In practice, this helps the machine builder or maintenance team integrate the indicator into a control circuit for basic monitoring. The M12 connector supports clean installation and easier wiring in modern machine layouts.

Where It Is Used

The Elesa+Ganter 113305-KN electrical level indicator is commonly considered for hydraulic power units, oil tanks, compact machinery, production equipment and maintenance-sensitive installations. It is especially useful where visual inspection and electrical feedback are both required in a compact component.

For more technical context about Elesa+Ganter, users can review compatible component families and related industrial hardware solutions.

FAQ

What is the Elesa+Ganter 113305-KN used for?

It is used to monitor oil level in hydraulic reservoirs and machine tanks. It combines visual level reading with an electrical monitoring function.

What does HCK.127-SST-M12-NBR-PC-P-80-NO-KN mean?

HCK.127 indicates the 127 mm column level indicator family. SST refers to stainless steel elements, M12 to the connector, NBR to sealing material, PC to the transparent tube, P to front protection, and 80-NO to the normally open 80°C electrical function.

Is this model suitable for hydraulic oil?

Yes, it is designed for typical oil level monitoring applications. Final compatibility should always be checked against the actual fluid, pressure and temperature conditions.

Why choose the protected P version?

The P version is useful when the transparent tube needs extra protection against accidental contact, workshop handling or mechanical exposure around the tank.
