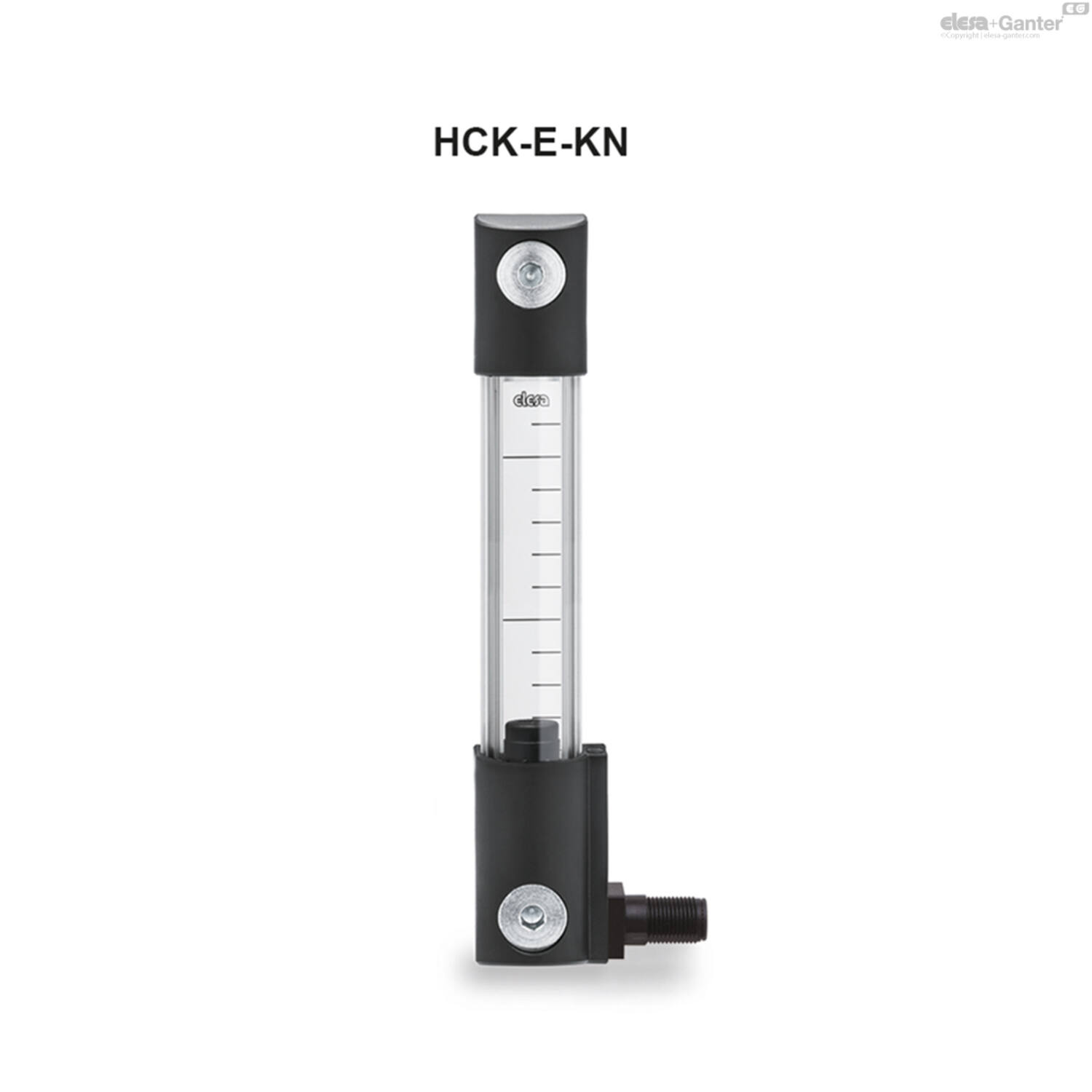

Elesa+Ganter 113023-KN Electrical Level Indicator with NO Contact and PT100 Probe

Elesa+Ganter 113023-KN electrical level indicator is a column-type fluid level monitoring component designed for hydraulic tanks, lubrication systems, and industrial reservoirs where both visual level checking and electrical feedback are required. Its full stock description, HCK.127-ZN-M12-NBR-PC-P-E-NO-STL-KN, gives useful information about the product structure: 127 mm fixing distance, zinc-plated steel hardware, M12 mounting thread, NBR sealing rings, polycarbonate level tube, removable front protection, minimum level sensor, normally open contact, and PT100 temperature probe.

Technical Structure and Material Design

This indicator uses black glass-fibre reinforced polyamide-based technopolymer assembly ends, a natural aluminium support, and a white lacquered aluminium contrast screen. The contrast screen improves level readability and can be removed before installation if level marks or custom wording must be added. The transparent polycarbonate tube is intended for oil applications, while the front polycarbonate protection helps reduce the risk of accidental impact damage during operation or maintenance.

NO Minimum Level Sensor and PT100 Temperature Probe

The NO contact configuration means the electrical contact closes when the minimum fluid level is reached. This makes the unit suitable for warning circuits where a signal must be generated only after the level drops to a defined threshold. The internal float includes a magnetic element that activates the contact at approximately 55 mm above the lower screw axis under reference test conditions. In addition, the STL suffix identifies a PT100 temperature electrical probe, allowing temperature monitoring through resistance variation.

Application Notes

The Elesa+Ganter 113023-KN electrical level indicator is commonly considered for oil reservoirs, hydraulic power units, industrial lubrication lines, compact machinery, and maintenance-critical systems where operators need a quick visual reading combined with electrical monitoring. NBR O-rings support a maximum continuous working temperature of 100°C, making the product appropriate for many standard oil-based industrial environments.

Elesa+Ganter 113023-KN For broader technical product context, see more information about Elesa+Ganter.

Elesa+Ganter 113023-KN FAQ

What is Elesa+Ganter 113023-KN used for?

It is used to monitor fluid level in tanks and reservoirs while also providing an electrical minimum-level signal and PT100 temperature feedback.

What does NO mean in this model?

NO means normally open. The contact closes when the minimum level is reached, creating a signal for control or alarm circuits.

What is the benefit of the PT100 probe?

The PT100 probe supports temperature measurement by reading resistance changes, helping maintenance teams monitor fluid condition more accurately.

Is this model suitable for oil?

Yes. The PC tube version is intended for oil applications, provided the operating conditions are checked against the actual system environment.
