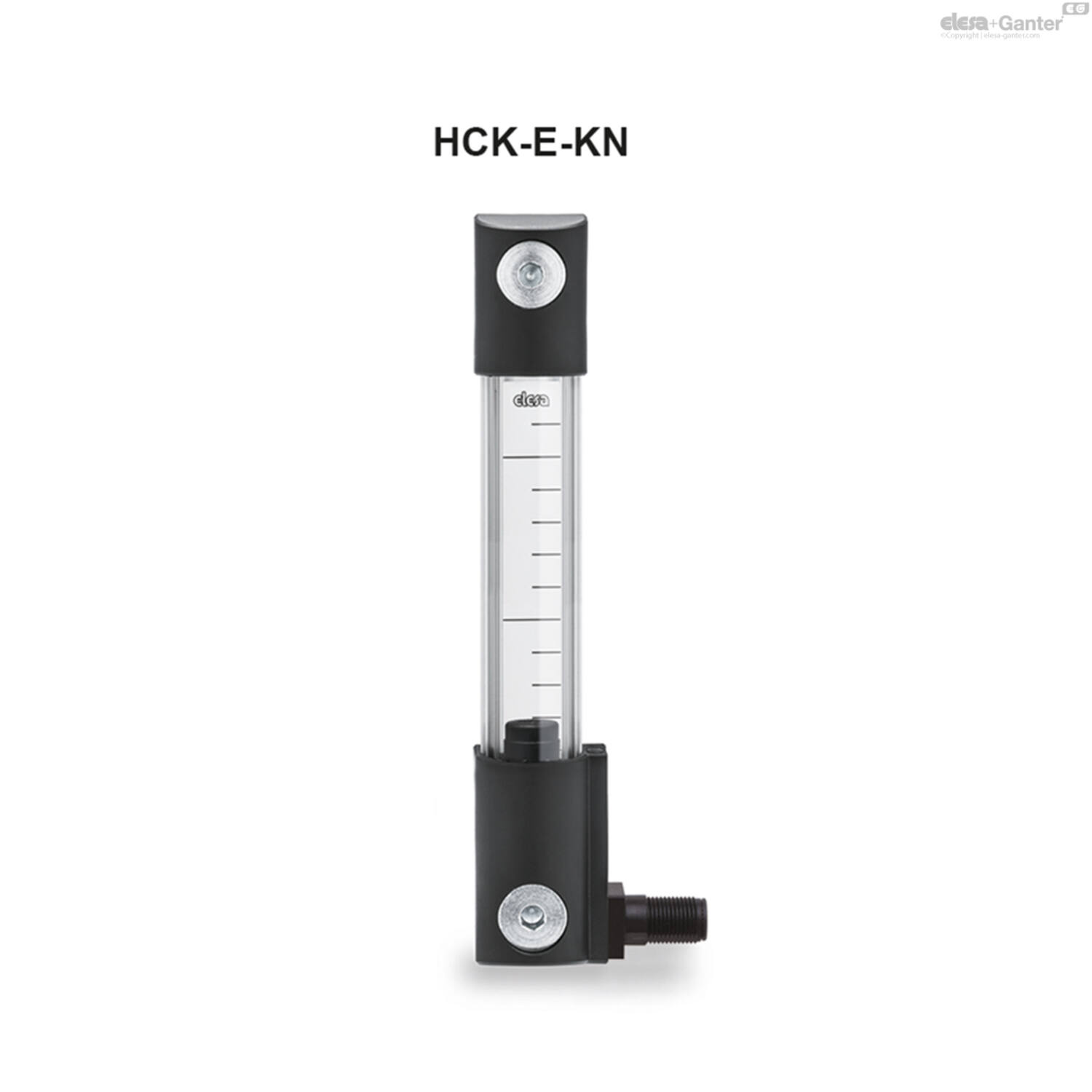

Elesa+Ganter 113005-KN HCK.127-ZN-M12-NBR-PC-P-80-NO-KN Oil Level Indicator

The Elsa+Ganter 113005-KN oil level indicator, product type HCK.127-ZN-M12-NBR-PC-P-80-NO-KN, is a technical column level indicator developed for hydraulic and lubrication systems where oil level visibility, robust sealing, and electrical signalling are required in one compact component.

Elesa+Ganter 113005-KN Construction and Materials

This model uses glass-fibre reinforced polyamide assembly ends, a natural aluminium support, and a white lacquered aluminium contrast screen. The screen supports easier level reading in busy industrial environments. The 127 mm size uses M12 fixing threads, zinc-plated steel screws, nuts, and washers. NBR synthetic rubber O-rings provide sealing for standard oil-service applications.

The “PC-P” part of the code means the level tube is transparent polycarbonate and the indicator includes removable polycarbonate front protection. This is especially useful where accidental contact, vibration, dust, or maintenance activity may affect the viewing surface.

Elesa+Ganter 113005-KN Functional Features

The “80-NO-KN” designation identifies a normally open electrical execution associated with an 80°C temperature function and KN connection version. In practical use, this supports better equipment monitoring because the operator can visually inspect the oil level while the system can also react to a defined temperature-related condition.

Industrial Relevance

This indicator is suitable for hydraulic reservoirs, industrial presses, compact power units, lubrication systems, and production machinery. To explore related parts and standards, see Elesa+Ganter machine components.

Elesa+Ganter 113005-KN FAQ

What makes the 113005-KN different from the standard 113005 version?

The KN suffix refers to the connection-related execution. It keeps the same HCK.127 structure, M12 fixing, NBR sealing, PC tube, and removable front protection.

Can it be used in hydraulic oil tanks?

Yes. This HCK PC execution is commonly specified for oil level monitoring in hydraulic reservoirs and similar oil-based systems.

Why is polycarbonate front protection useful?

It helps protect the transparent viewing area from external contact while remaining removable for cleaning and maintenance.

Elesa+Ganter 113005-KN Does it only show level visually?

No. Besides visual level reading, this execution includes a normally open electrical temperature-related function.
